PROJECT DETAILS

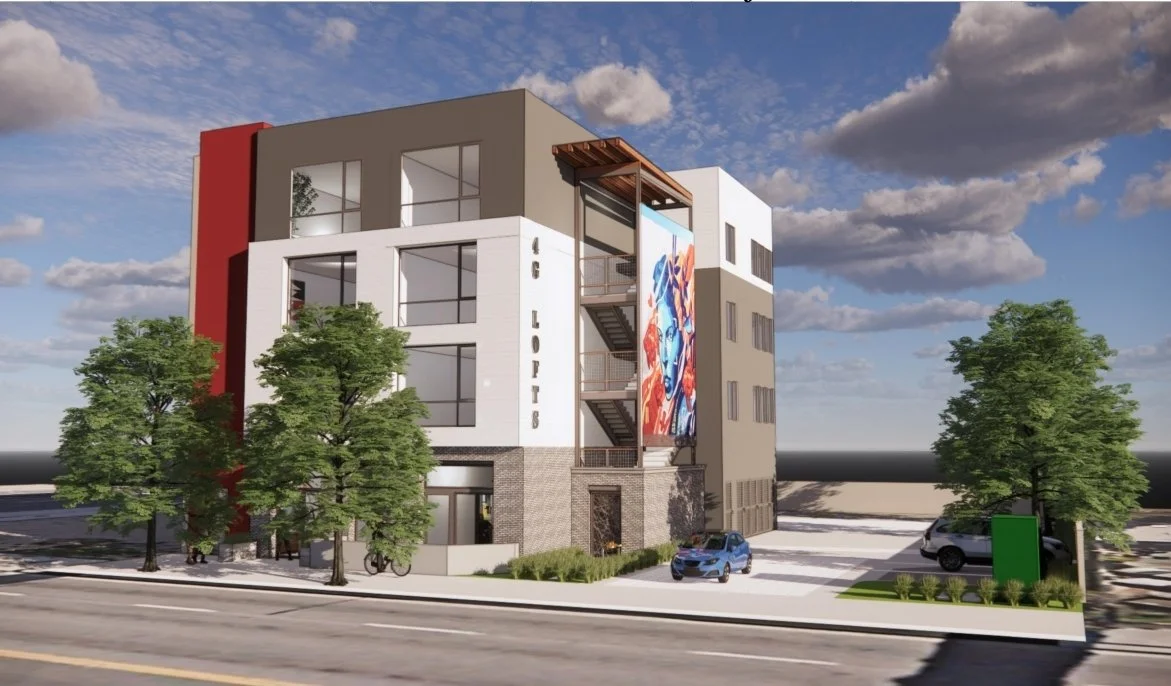

This new four-story multifamily residential development is designed to provide transit-oriented urban living with modern unit layouts, private decks, community open space, bicycle facilities, and energy-efficient systems. The project consists of fifteen residential units above a ground-floor parking level and incorporates elevator access, EV charging infrastructure, and common amenity areas.
GENERAL INFORMATION
City: Santa Ana
County: Orange
Zip Code: 92703
General Plan Designation: Urban Neighborhood (UN)
Zoning: CDR Zone, Flex Block Building Type, Shopfront Type
Occupancy Type: R-2
Construction Type: Type V-A, Fire Sprinklered
Stories: 4
Maximum Building Height: 50'-0"
SITE INFORMATION
Lot Area: 12,500 SF
Lot Area: 0.287 Acres
Front Yard Setback: 0'-0"
Side Yard Setbacks: 1'-0", 3'-0", and 5'-0"
Rear Yard Setback: 5'-0"
Maximum Height Allowed: 50'-0"
PARKING
Parking Provided: 17 Spaces
Standard Spaces: 15 (Including 2 EV Spaces)
Van Accessible Spaces: 2
Studio Units: 6 Spaces Required
1 Bedroom Units: 6 Spaces Required
2 Bedroom Units: 3 Spaces Required
BUILDING OVERVIEW
Total Units: 15
Stories: 4
Construction Type: Type V-A
Gross Building Area: 15,514 SF
Residential Building Type: Multifamily Apartment Building
Fire Sprinkler System: Required and Installed
EXTERIOR FEATURES

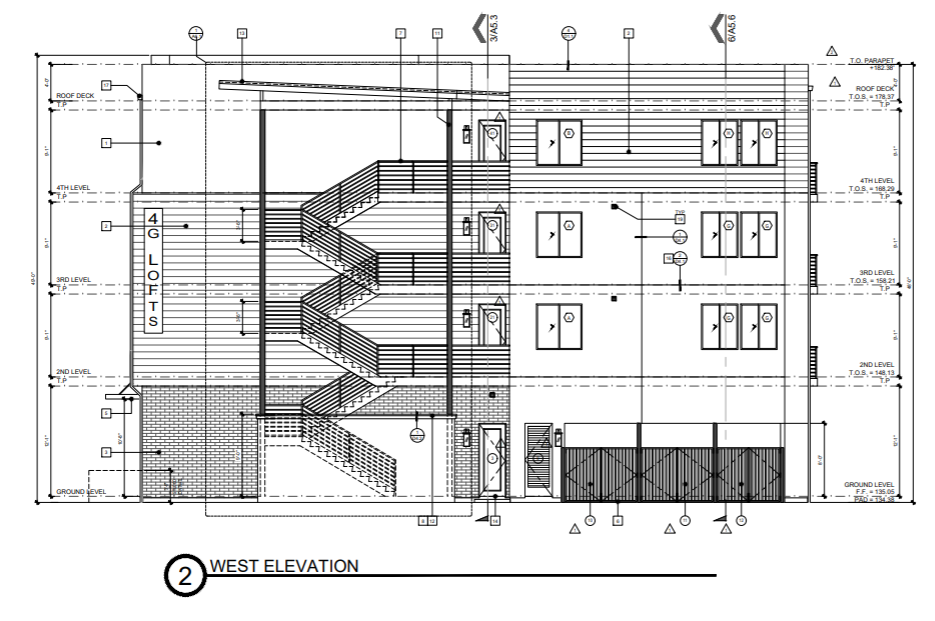

• Four-story multifamily residential building
• Ground-floor parking
• Private decks
• Community room
• Common open space areas
• Secured bicycle storage
• Transit-oriented development design
UNIT MIX
Unit A
• Studio / 1 Bath
• 3 Units
• 579 SF Net
Unit B
• 1 Bedroom / 1 Bath
• 6 Units
• 632 SF Net
Unit C
• 1 Bedroom / 1 Bath
• 3 Units
• 759 SF Net
Unit D
• 2 Bedroom / 2 Bath
• 3 Units
• 934 SF Net
FLOOR AREAS

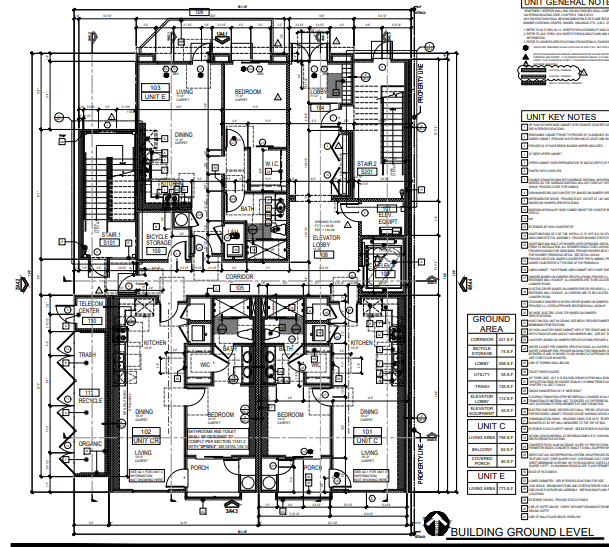

Level 1: 2,409 SF

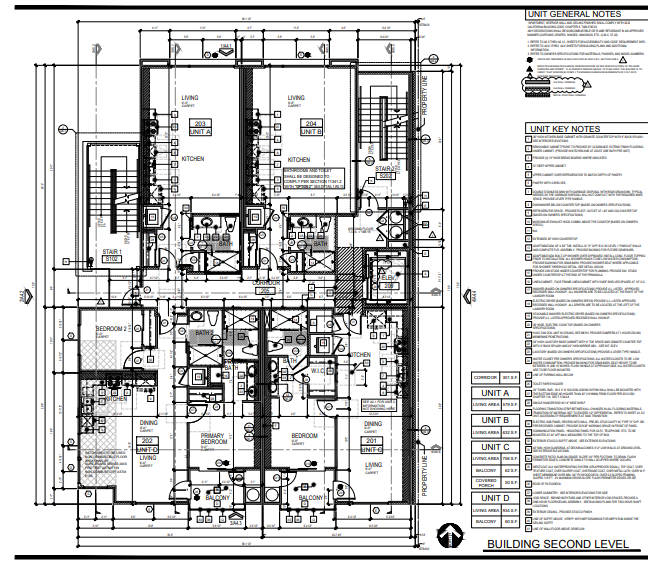

Level 2: 3,888 SF

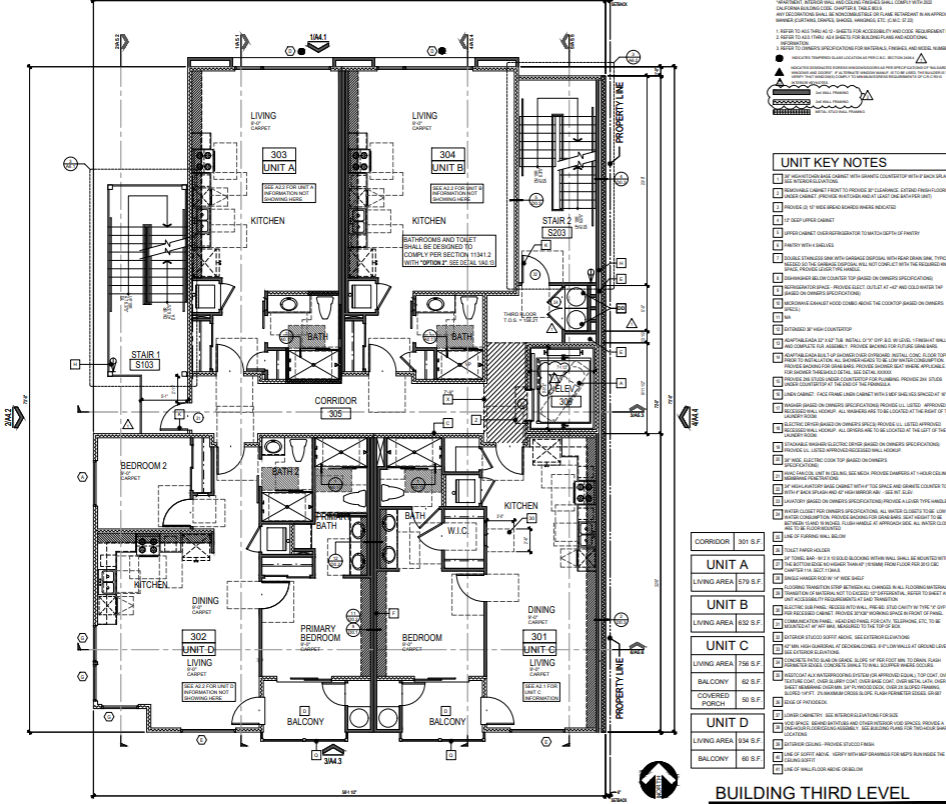

Level 3: 3,888 SF

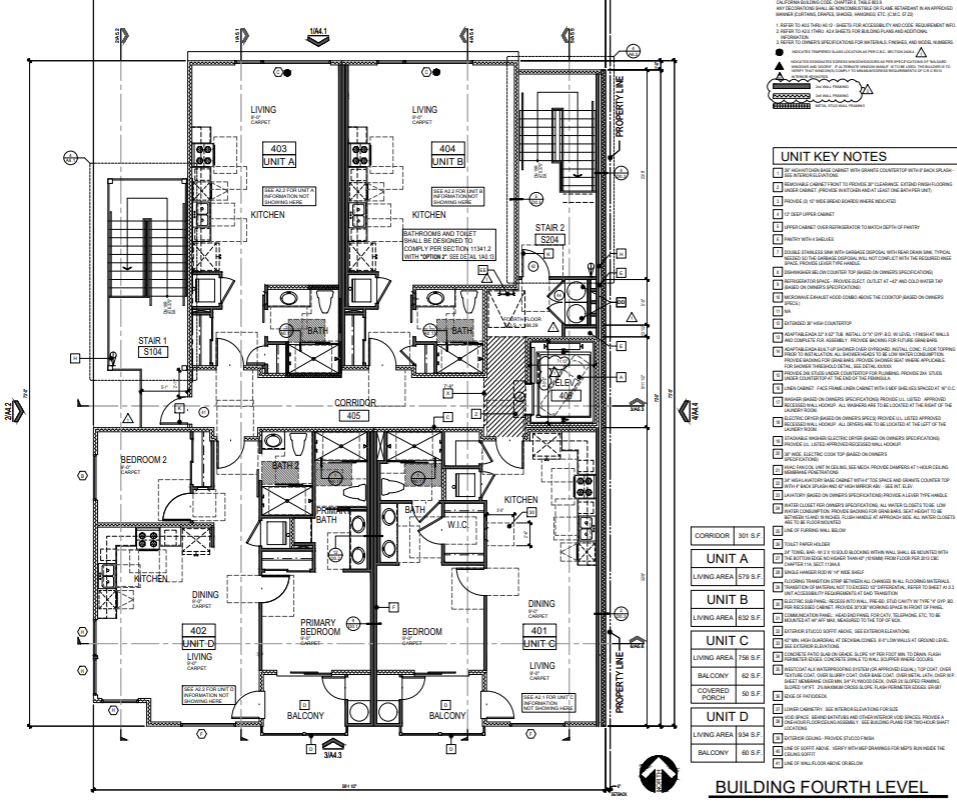

Level 4: 3,888 SF
Total Gross Building Area: 15,514 SF
OPEN SPACE / AMENITIES
Common Open Space Required: 1,875 SF
Common Open Space Provided: 2,625 SF
Private Open Space Required: 750 SF
Private Deck Area Provided: 475 SF
Lobby Area: 245 SF
Elevator Lobby: 193 SF
Vertical Circulation: 301 SF
Elevator Equipment Room: 53 SF
Telecom Room: 35 SF
Trash Room: 193 SF
Bicycle Storage: 74 SF
BICYCLE FACILITIES
Bicycle Spaces Required: 1 Space Per 5 Units
Minimum Required: 4 Spaces
Bicycle Spaces Provided: 4 Spaces
Secured Bicycle Storage Located Within Garage
ADDITIONAL FEATURES
• Fire sprinkler system
• Elevator service
• EV charging spaces
• Van-accessible parking spaces
• Bicycle storage facilities
• Private decks and porches
• Transit-oriented development parking incentives
• Community open space areas
