PROJECT DETAILS

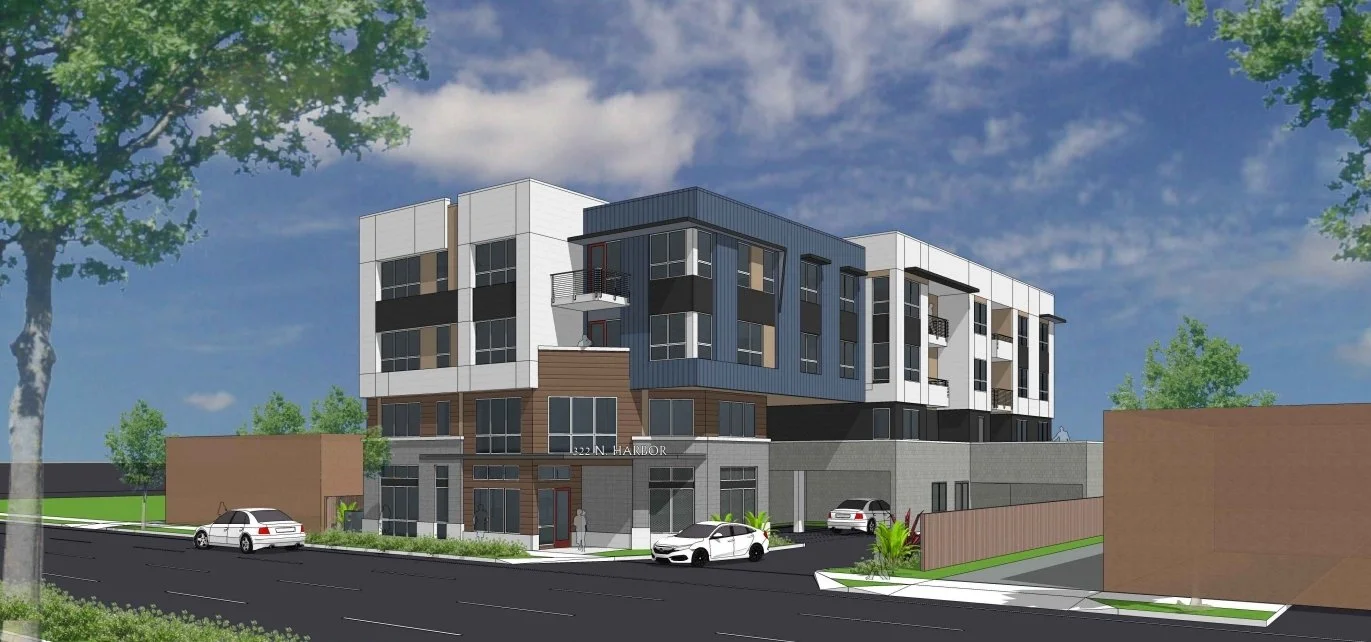

This new four-story multifamily residential development is designed to provide modern urban living with efficient unit layouts, community amenities, private decks, bicycle storage, and transit-oriented parking incentives. The project consists of twenty-two dwelling units above a ground-floor parking level and incorporates common open space areas, community facilities, and contemporary architectural design.
GENERAL INFORMATION
City: Santa Ana
County: Orange
Zip Code: 92703
Zoning: Harbor Mixed Use Plan (Corridor)
Construction Type: Type V over Type I
Stories: 4
Maximum Building Height: 50'-0"
SITE INFORMATION
Lot Area: 15,588 SF
Floor Area Ratio (FAR): 1.36
Proposed FAR: 1.29
Lot Coverage: 54%
Front Yard Setback: 0'-0"
Side Yard Setback: 5'-6"
Rear Yard Setback: 6'-4"
PARKING
Total Parking Spaces: 22
Standard Spaces: 10
Compact Spaces: 7
Accessible Spaces: 2
EV Spaces: 3
EV Capable Spaces: 6
BUILDING OVERVIEW
Total Units: 22
Stories: 4
Construction Type: Type V Over Type I
Gross Building Area: 30,582 SF
Building Floor Area: 20,109 SF
Residential Area: 17,065 SF
Circulation Area: 3,044 SF
Mechanical / Garage / Vertical Circulation: 3,044 SF
EXTERIOR FEATURES
• Four-story multifamily residential building
• Ground-floor parking
• Private decks
• Community room
• Common open space areas
• Secured bicycle storage
• Transit-oriented development design
UNIT MIX

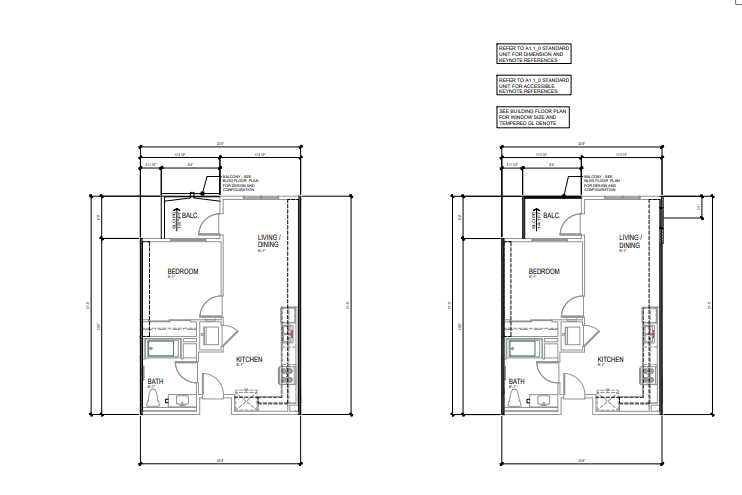

Unit A1
• 1 Bedroom / 1 Bath Flat
• 18 Units
• 581 SF Net
• 633 SF Gross

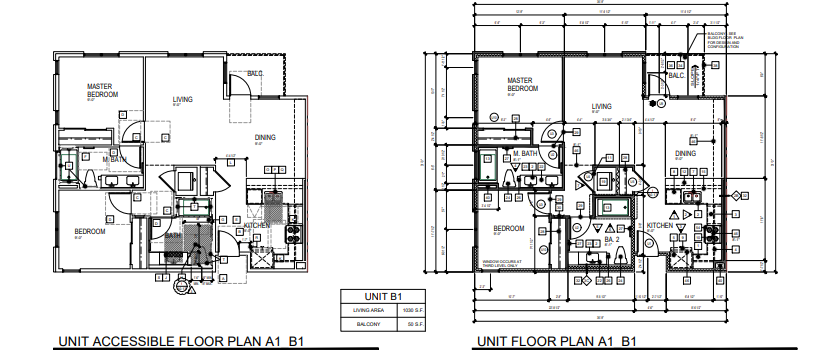

Unit B1
• 2 Bedroom / 2 Bath Flat
• 2 Units
• 959 SF Net
• 1,027 SF Gross
Unit B2
• 2 Bedroom / 2 Bath Flat
• 2 Units
• 996 SF Net
• 1,070 SF Gross
Total Residential Units: 22
Net Residential Area: 14,368 SF
Gross Residential Area: 15,588 SF
FLOOR AREAS

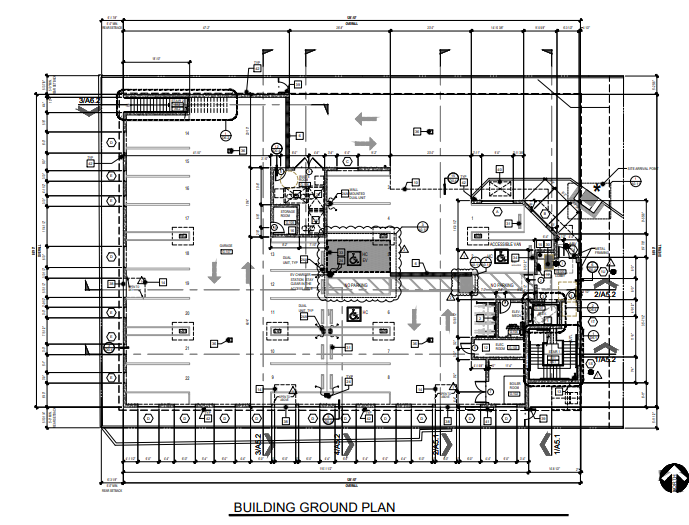

Level 1: 5,275 SF

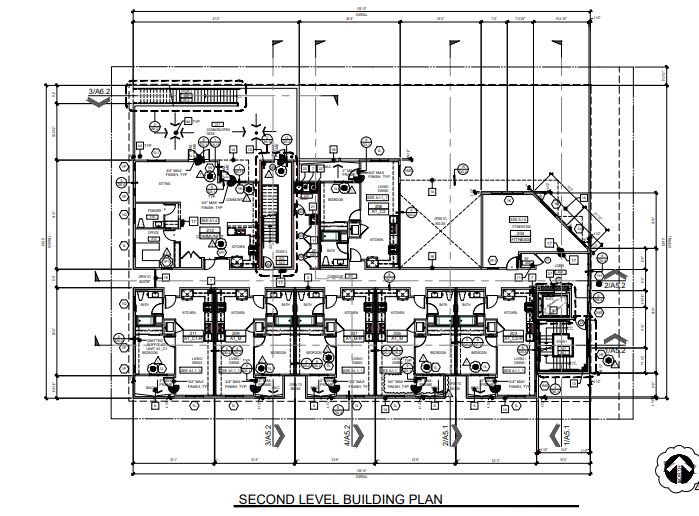

Level 2: 5,895 SF

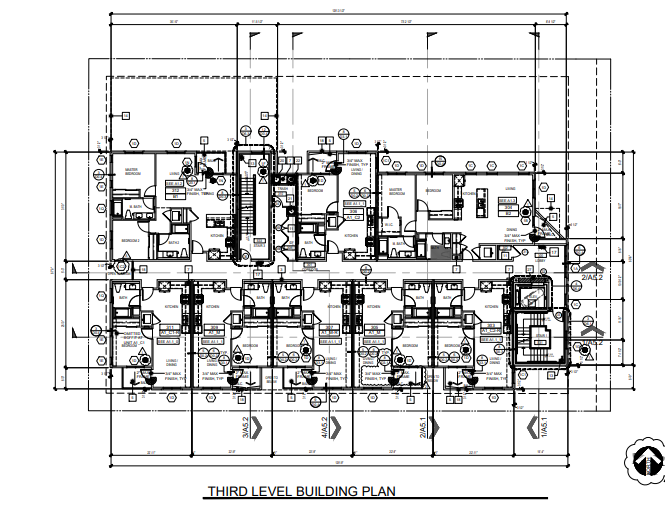

Level 3: 5,895 SF

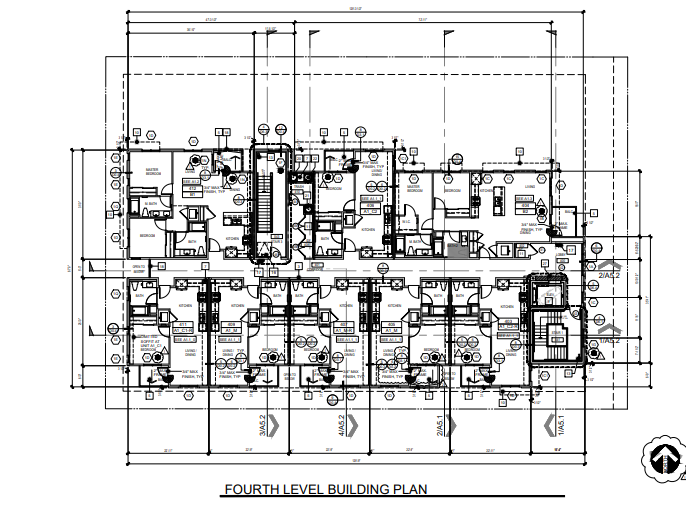

Level 4: 5,895 SF
Total Residential Floor Area: 17,065 SF
OPEN SPACE / AMENITIES
Common Open Space Required: 2,224 SF
Common Open Space Provided: 3,324 SF
Community Room: 800 SF
Private Deck Area Required: 1,100 SF
Private Deck Area Provided: 3,377 SF
Deck Area: 930 SF
Circulation / Lobby Area: 254 SF
Garage Area: 740 SF
Open Space Provided: 6,945 SF
BICYCLE FACILITIES
Bicycle Spaces Required: 1 Space Per 5 Units
Minimum Required: 4 Spaces
Bicycle Spaces Provided: 5 Spaces
Secured Bicycle Storage Located Within Garag
ADDITIONAL FEATURES
• EV parking spaces
• Accessible parking spaces
• Community room
• Private decks
• Bicycle storage facilities
• Common open space areas
• Transit-oriented development parking incentives
